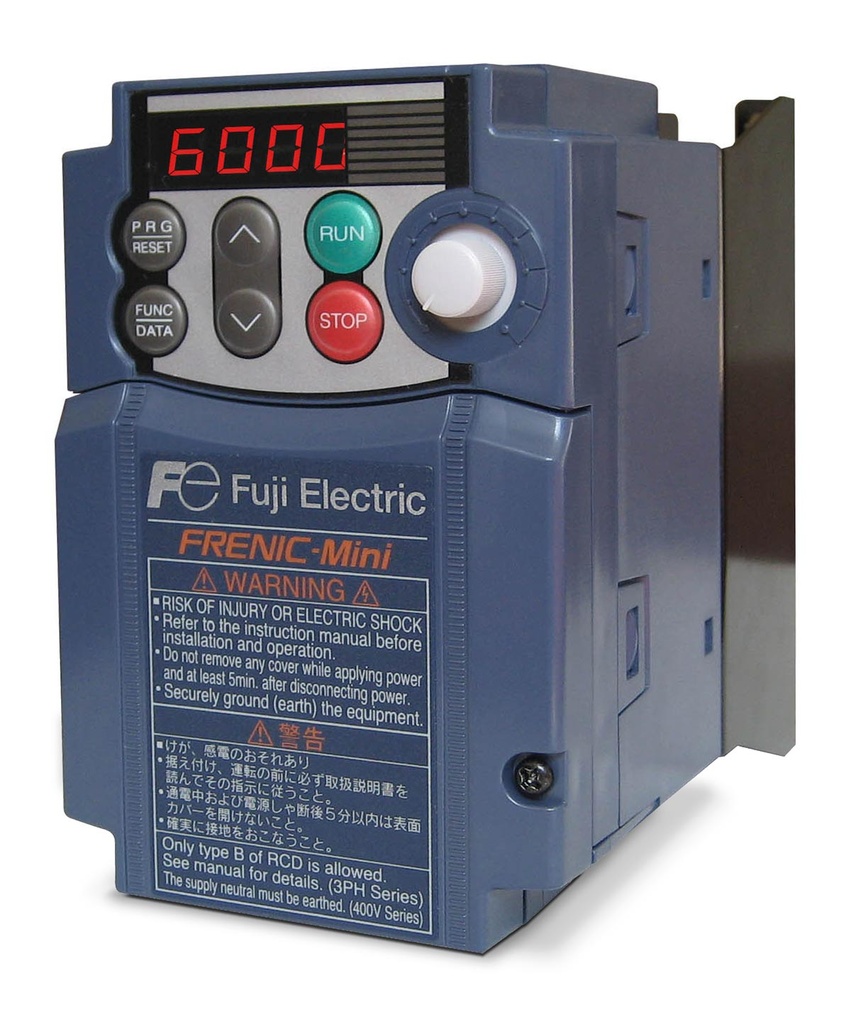

Drives, MINI Series
Drive, AC, 3HP, 240V, 12A, CT, OP
- Keypad Operator and LED Screen
- 24 VDC Output Terminal
|
Manufacturer Part Number |
FRN0012C2S-7A |
|
Manufacturer |
Fuji |
|
Product Series |
MINI |
|
Family Series |
Fuji Drives, Mini Series |
|
Input Range Voltage (AC) |
200 to 240 Volts AC |
|
Input Phase |
1 |
|
HP (Constant Torque Rating) |
3 |
|
Current (Constant Torque Rating) |
12 |
|
Braking Type |
DC Injection;Dynamic Braking Transistor Included |
|
Closed Loop |
No |
|
AC Line Regenerative |
No |
|
Operator Controls |
Built In |
|
IP Rating |
IP20 |
|
Max Frequency |
400 |
|
Motor Control-Max Level |
V/Hz (Scalar) |
|
Mounting |
Panel |
|
Package |
MINIC20011-4/0012-7/0020-2 |
|
Comments |
New firmware for permanent magnet motors. Built in RS485 port w/ standard Modbus RTU communication. |
|
Height |
7.09 Inches |
|
Width |
5.51 Inches |
|
Depth |
5.47 Inches |
|
Net Weight |
5.5 lbs |
|
Gross Weight |
5.5 lbs |
