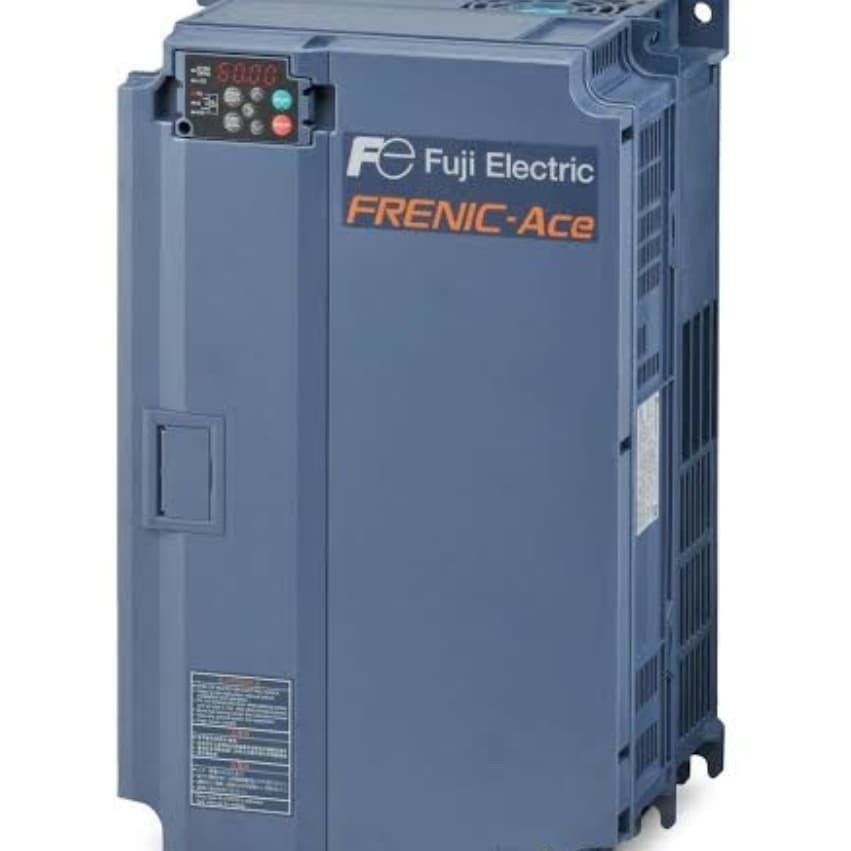

AC Drive 12K.W, 400V, 5.5A, CT, OP
- Sensorless dynamic torque vector control
- Motor vector control with PG (with optional card)
- Synchronous motor with sensorless vector control
- 2‑channel on‑board RS485 communications port
- Standard CANopen compatibility
- Removable keypad device
Manufacturer Part Number | FRN0012E2S-4GB |
Manufacturer | Fuji |
Product Series | Ace |
Family Series | Fuji Drives, Ace Series |
Input Range Voltage (AC) | 380 to 480 Volts AC |
Input Phase | 3 |
HP (Constant Torque Rating) | 1 |
Current (Constant Torque Rating) | 5 |
Braking Type | DC Injection;Dynamic Braking Transistor Included |
Closed Loop | Optional |
AC Line Regenerative | No |
Operator Controls | Keypad Included |
IP Rating | IP20 |
Max Frequency | 500 |
Motor Control-Max Level | Open Loop Vector (Sensorless Vector) |
Mounting | Panel |
Package | ACE0005-7 |
Comments | Safe Torque Off, permanent magnet motor control, customizable logic, built in dual RS485 ports. |
Height | 130 m.m |
Width | 140 m.m |
Depth | 143 m.m |
Net Weight | 3.225 lbs |
Gross Weight | 4.195 lbs |
