  2. FUJI FRN0168E2S-4GB ACE AC DRIVE
Public Pricelist

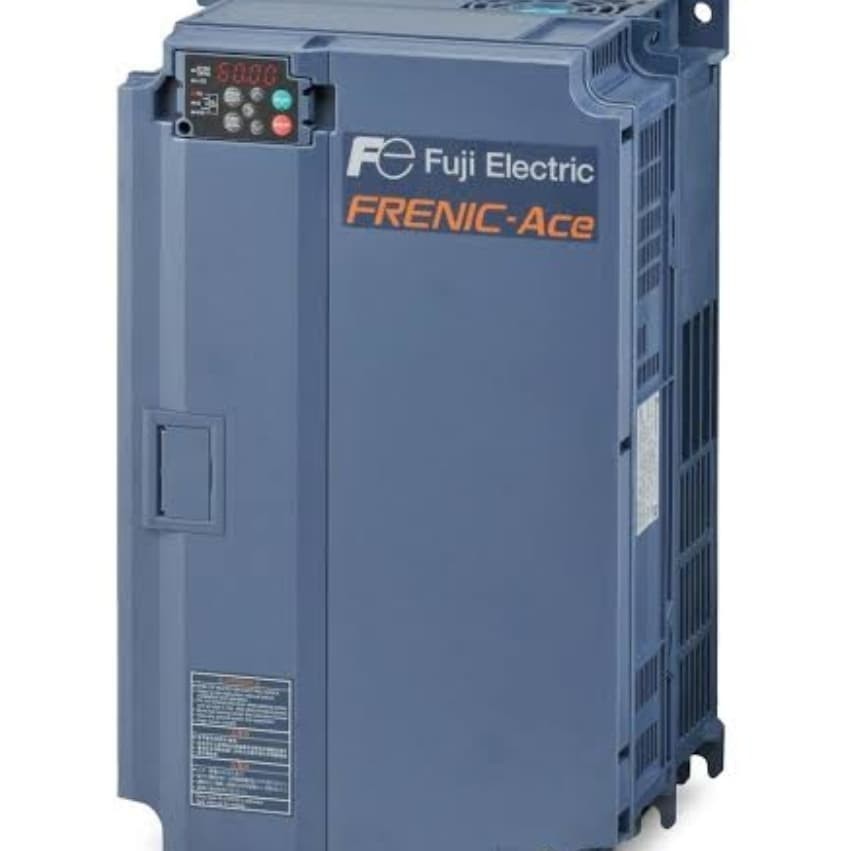

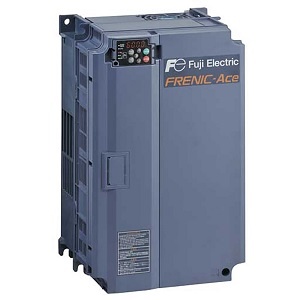

FUJI FRN0168E2S-4GB ACE AC DRIVE

    ₹ 0.00 ₹ 0.00 0.0 INR

    ₹ 0.00

    This combination does not exist.

    Add to Cart





    Drives, Ace Series



    AC Drive 1.0HP, 240V, 5.0A, CT, OP



    • Sensorless dynamic torque vector control

    • Motor vector control with PG (with optional card)

    • Synchronous motor with sensorless vector control

    • 2‑channel on‑board RS485 communications port

    • Standard CANopen compatibility

    • Removable keypad device

    Manufacturer Part Number

    FRN0168E2S-4GB

    Manufacturer

    Fuji

    Product Series

    Ace

    Family Series

    Fuji Drives, Ace Series

    Input Range Voltage (AC)

    380 to 480 Volts AC

    Input Phase

    3

    HP (Constant Torque Rating)

    75

    Current (Constant Torque Rating)

    112

    HP (Variable Torque Rating)

    100

    Current (Variable Torque Rating)

    150

    Braking Type

    DC Injection;Dynamic Braking Transistor Included

    Closed Loop

    Optional

    AC Line Regenerative

    No

    Operator Controls

    Keypad Included

    IP Rating

    IP20

    Max Frequency

    500

    Motor Control-Max Level

    Open Loop Vector (Sensorless Vector)

    Mounting

    Panel

    Package

    ACE0139-4/0168-4/0203-4

    Comments

    Safe Torque Off, permanent magnet motor control, customizable logic, built in dual RS485 ports.

    Height

    26.57 Inches

    Width

    14.3 Inches

    Depth

    10.87 Inches

    Net Weight

    0 lbs

    Gross Weight

    0 lbs
